HS210 - Brass Compression Fittings

Pipe fittings for PEX-AL-PEX pipes

Honson HS210 brass compression fittings for multilayer pipe are well-designed and suitable for use in multilayer plumbing system. Provided with double O-ring seals, these fittings are used in sanitary water and heating system and are available in sizes from Ø16 to Ø 32. They are easily installed and disassembled.

ItemDescriptionMaterials
1NutCW617N-4MS / MS58
2Lock RingMS58
3O-ringEPDM
4BodyCW617N-4MS / MS58
5Insolation spacerPlastic

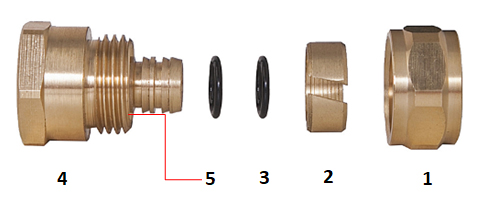

Structure

Product Technical Document
Features

  • Ideal for use in plumbing system

  • CE approved

  • Double O-rings ensure excellent sealing characteristics

  • Fast and simple installation with spanner

  • Removable and reusable

  • sizes from Ø16 to Ø 32

  • Marked for full traceability

Installation Instruction

  • To avoid incorrect assembly, you should check the dimensions of the components before installation.

  • Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.

  • Deburr and calibrate the internal surface of the pipe with appropriate tools.

  • Fit the nut, the lock ring on the pipe sequentially.

  • Fit the O-rings on the body.

  • Insert the pipe with the components on the body up to the mechanical stop.

  • Tighten the nut by hand first, then using tool tighten the nut.

Brass Compression Straight Coupler
Equal Straight Coupler C×C, HS210-001
Inquiry
SIZEDL
16×16(×2.0)1644
20×20(×2.0)2044
25×25(×2.5)2553
32×32(×3.0)3255
Reducing Straight Coupler C×C, HS210-002
Inquiry
SIZEDD1L
20(×2.0)×16(×2.0)201644
25(×2.5)×16(×2.0)251649
25(×2.5)×20(×2.0)252049
32(×3.0)×16(×2.0)321650.5
32(×3.0)×20(×2.0)322050.5
32(×3.0)×25(×2.5)322554.5
Female Straight Coupler C×FI, HS210-003
Inquiry
SIZEDGLL1
16(×2.0)×1/2″F161/2″3311.5
16(×2.0)×3/4″F163/4″34.513
20(×2.0)×1/2″F201/2″29.511.5
20(×2.0)×3/4″F203/4″34.513
25(×2.5)×3/4″F253/4″3513
25(×2.5)×1″F251″40.514
32(×3.0)×1″F321″4014
32(×3.0)×1 1/4″F321 1/4″42.516
Male Straight Coupler C×MI, HS210-004
Inquiry
SIZEDGLL1
16(×2.0)×1/2″M161/2″349.5
16(×2.0)×3/4″M163/4″35.511
20(×2.0)×1/2″M201/2″349.5
20(×2.0)×3/4″M203/4″35.511
25(×2.5)×3/4″M253/4″40.511
25(×2.5)×1″M251″4212.5
32(×3.0)×3/4″M323/4″4211
32(×3.0)×1″M321″43.512.5
32(×3.0)×1 1/4″M321 1/4″45.514.5
Brass Compression Elbow
Equal Elbow C×C, HS210-005
Inquiry
SIZEDLH
16×16(×2.0)163232
20×20(×2.0)2035.535.5
25×25(×2.5)254242
32×32(×3.0)324545
Female Elbow C×FI, HS210-006
Inquiry
SIZEDGLHH1
16(×2.0)×1/2″F161/2″33.517.511.5
20(×2.0)×1/2″F201/2″34.519.511.5
20(×2.0)×3/4″F203/4″37.52113
25(×2.5)×3/4″F253/4″422313
25(×2.5)×1″F251″45.524.514
32(×3.0)×1″F321″45.527.514
Male Elbow C×MI, HS210-007
Inquiry
SIZEDGLHH1
16(×2.0)×1/2″M161/2″32.523.59.5
20(×2.0)×1/2″M201/2″33279.5
20(×2.0)×3/4″M203/4″3628.511
25(×2.5)×3/4″M253/4″403211
25(×2.5)×1″M251″43.533.512.5
32(×3.0)×1″M321″4437.512.5
Wall Plate Elbow C×FI, HS210-008
Inquiry
SIZEDGLHH1H2
16(×2.0)×1/2″F161/2″33.531.517.511.5
20(×2.0)×1/2″F201/2″34.53719.511.5
20(×2.0)×3/4″F203/4″38.537.52113
Brass Compression Tee
Equal Tee C×C×C, HS210-011
Inquiry
SIZEDLH
16×16×16(×2.0)163834
20×20×20(×2.0)207236
25×25×25(×2.5)258040
32×32×32(×3.0)329246
Reducing Tee C×C×C, HS210-012
Inquiry
SIZEDD1D2L1L2H
20(×2.0)×16(×2.0)×16(×2.0)20161631.53134.5
20(×2.0)×16(×2.0)×20(×2.0)20162031.531.534.5
20(×2.0)×20(×2.0)×16(×2.0)20201635.533.535.5
20(×2.0)×25(×2.5)×20(×2.0)20252037.537.540
25(×2.5)×16(×2.0)×16(×2.0)251616343039
25(×2.5)×16(×2.0)×20(×2.0)251620343239
25(×2.5)×16(×2.0)×25(×2.5)251625343439
25(×2.5)×20(×2.0)×16(×2.0)252016363339.5
25(×2.5)×20(×2.0)×20(×2.0)252020363439.5
25(×2.5)×20(×2.0)×25(×2.5)252025363639.5
25(×2.5)×32(×3)×25(×2.5)25322544.544.542
32(×3)×16(×2.0)×25(×2.5)321625373443
32(×3)×16(×2.0)×32(×3)321632373743
32(×3)×20(×2.0)×20(×2.0)322020393443.5
32(×3)×20(×2.0)×25(×2.5)322025393543.5
32(×3)×20(×2.0)×32(×3)322032393943.5
32(×3)×25(×2.5)×25(×2.5)322525423744.5
32(×3)×25(×2.5)×32(×3)322532424244.5
View All
Female Tee C×FI, HS210-013
Inquiry
SIZEDGLHH1
16(×2.0)×1/2″F×16(×2.0)161/2″6717.511.5
20(×2.0)×1/2″F×20(×2.0)201/2″6919.511.5
20(×2.0)×3/4″F×20(×2.0)203/4″752113
25(×2.5)×3/4″F×25(×2.5)253/4″842313
25(×2.5)×1″F×25(×2.5)251″9124.514
32(×3.0)×1″F×32(×3.0)321″9127.514
Male Tee C×MI, HS210-014
Inquiry
SIZEDGLHH1
16(×2.0)×1/2″M×16(×2.0)161/2″6423.59.5
20(×2.0)×1/2″M×20(×2.0)201/2″66279.5
20(×2.0)×3/4″M×20(×2.0)203/4″7228.511
25(×2.5)×3/4″M×25(×2.5)253/4″803211
25(×2.5)×1″M×25(×2.5)251″8733.512.5
32(×3.0)×1″M×32(×3.0)321″8837.515.5
