HS150 - Brass Compression Fittings

Honson HS150 brass compression fittings male threading for PE pipes are specifically designed for water distribution. Compared with HS150 series fittings, this range is more competitive in price while with the same function as HS150 fittings.

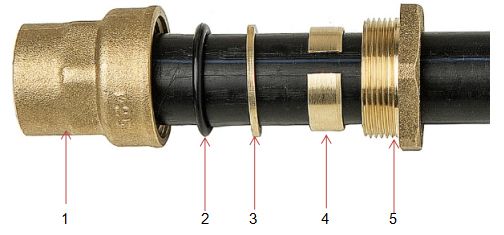

Item	Description	Materials
1	Body	CW617N-4MS
2	O ring	NBR
3	Washer ring	HPb57-3
4	Compression (C-Ring)	HPb57-3
5	Nut	CW617N-4MS

Structure

Product Technical Document

Features

Ideal for use in plumbing system and heating installation
ACS approved
Compliant with DIN8076-1 standard
Adaptable for polyethylene pipes (PE) joint of low, medium and high density
Full range from 20mm to 63mm
Body and nut made in hot forging brass according to UNE-EN12165.

Min and max Temp: -10°C to + 80°C
Max Pressure PN: 16 bar (PN-16)
Marked for full traceability
Surface treatment options: raw
Adaptable pipe: LDPE, MDPE, HDPE
Fastening threads: ISO228/1

Straight Coupler

Equal Straight Coupler C×C, HS150-001

Inquiry

SIZE	D	L
20×20	21	43
25×25	26	45.5
32×32	33	51.5
40×40	41	57.5
50×50	51	62
63×63	64.5	88

Female Straight Coupler C×FI, HS150-002

Inquiry

SIZE	D	G	L	L1
20×1/2''F	21	1/2''	35	13
20×3/4''F	21	3/4''	40	15
25×1/2''F	26	1/2''	36	13
25×3/4''F	26	3/4''	38.5	15
25×1''F	26	1''	43.5	17
32×3/4''F	33	3/4''	42	15
32×1''F	33	1''	43.5	17
40×1''F	41	1''	46.5	17
40×1 1/4''F	41	1 1/4''	48.5	19
50×1 1/4''F	51	1 1/4''	50	19
50×1 1/2''F	51	1 1/2''	48	18
63×1 1/2''F	64.5	1 1/2''	61	18
63×2''F	64.5	2''	64	21

Male Straight Coupler C×MI, HS150-003

Inquiry

SIZE	D	G	L	L1
20×1/2''M	21	1/2''	34	11
20×3/4''M	21	3/4''	35	12
25×1/2''M	26	1/2''	35	11
25×3/4''M	26	3/4''	36	12
25×1''M	26	1''	38	14
32×3/4''M	33	3/4''	39.5	12
32×1''M	33	1''	41.5	14
40×1''M	41	1''	44.5	14
40×1 1/4''M	41	1 1/4''	46.5	16
50×1 1/4''M	51	1 1/4''	49	16
50×1 1/2''M	51	1 1/2''	50	17
63×1 1/2'M	64.5	1 1/2''	63	17
63×2'M	64.5	2''	64.5	18.5

Straight Tap Connector C×FI, HS150-011

Inquiry

SIZE	D	G	L
20×1/2''F	21	1/2''	43.5
20×3/4''F	21	3/4''	44.5
25×3/4''F	26	3/4''	46
25×1''F	26	1''	49
32×1''F	33	1''	52.5

Compression Repair Coupling, HS150-012

Inquiry

SIZE	D	L
20×20	21	95
25×25	26	100
32×32	33	105
40×40	41	111
50×50	51	113
63×63	64.5	134

Threaded Reducing Nipple, HS150-013

Inquiry

SIZE	G	M	L	L1
25×3/4''M	3/4''	33×1.5	36	14.5
32×1''M	1''	42×1.5	40.5	16.8
32×1 1/4''M	1 1/4''	42×1.5	42.7	19
40×1 1/4''M	1 1/4''	52×1.5	43.5	19
40×1 1/2''M	1 1/2''	52×1.5	43.5	19
50×1 1/2''M	1 1/2''	64×1.5	45.5	19
50×2'M	2''	64×1.5	47.5	21
63×2'M	2''	80×1.5	50	21

Threaded Reducing Bushing, HS150-014

Inquiry

SIZE	D	M	L
32×25	26	42X1.5	24
40×32	33	52X1.5	27.5
50×32	33	64X1.5	27.5
50×40	41	64X1.5	30.5
63×40	41	80X1.5	30.5
63×50	51	80X1.5	32.5

Elbow

Equal Elbow C×C, HS150-004

Inquiry

SIZE	D	L	H
20×20	21	37	37
25×25	26	38	38
32×32	33	44	44
40×40	41	53	53
50×50	51	59	59
63×63	64.5	74	74

Female Elbow C×FI, HS150-005

Inquiry

SIZE	D	G	L	H	H1
20×1/2''F	21	1/2''	34	23	13
25×1/2''F	26	1/2''	35	23	13
25×3/4''F	26	3/4''	37.5	27.5	15
32×1''F	33	1''	44	31.5	17
40×1 1/4''F	41	1 1/4''	52	39	19
50×1 1/2''F	51	1 1/2''	57.5	41.5	19
63×2''F	64.5	2''	74	49	22

Male Elbow C×MI, HS150-006

Inquiry

SIZE	D	G	L	H	H1
20×1/2''M	21	1/2''	37	31	11
25×1/2''M	25	1/2''	38	33.5	11
25×3/4''M	26	3/4''	38	35	12
32×3/4''M	33	3/4''	40.5	38	12
32×1''M	33	1''	44	41	14
40×1''M	41	1''	47	46	14
40×1 1/4''M	41	1 1/4''	55	48	16
50×1 1/2''M	51	1 1/2''	60	53	17
63×2''M	64.5	2''	75	60.5	18.5

Wall Plate Elbow C×FI, HS150-007

Inquiry

SIZE	D	G	L	H	H1	H2
20×1/2''F	21	1/2''	34	43	23	13
25×1/2''F	26	1/2''	35	48	23	13
25×3/4''F	26	3/4''	37.5	52.5	27.5	15
32×1''F	33	1''	44	61.5	31.5	17

Tee

Equal Tee C×C×C, HS150-008

Inquiry

SIZE	D	L	H
20×20×20	21	64	35
25×25×25	26	70	36.5
32×32×32	33	83	43
40×40×40	41	96	50
50×50×50	51	112	57.5
63×63×63	64.5	138	76

Female Tee C×C×FI, HS150-009

Inquiry

SIZE	D	G	L	H	H1
20×1/2''F	21	1/2''	63.5	33	13
25×1/2''F	26	1/2''	65	35	13
25×3/4''F	26	3/4''	68	37.5	15
32×1''F	33	1''	81	43	17
40×1 1/4''F	41	1 1/4''	96	50	19
50×1 1/2''F	51	1 1/2''	112	57	19
63×2''F	64.5	2''	136	67	22

Male Tee C×C×MI, HS150-010

Inquiry

SIZE	D	G	L	H	H1
20×1/2''M	21	1/2''	60	30	11
25×3/4''M	26	3/4''	67	34	12
32×1''M	33	1''	80	40	14
40×1 1/4''M	41	1 1/4''	95	49	16.5
50×1 1/2''M	51	1 1/2''	108	54.5	17
63×2'M	64.5	2''	136	64.5	18.5

Compression Reducing Tee C×C×C, HS150-015

Inquiry

SIZE	D	D1	L	H
32×25×32	33	26	76	40
40×32×40	41	33	120	47
50×32×50	51	33	130	52.5
50×40×50	51	41	130	55.5
63×32×63	64.5	33	140	61
63×40×63	64.5	41	140	64
