HS140 - Light Duty Brass Compression Fittings

Pipe fittings for plastic tubing

Honson HS140 brass compression fittings female threading for PE pipes are specifically designed for use on water distribution. Compared with HS130 series fittings, this range is more competitive in price while with the same function as HS130 fittings.

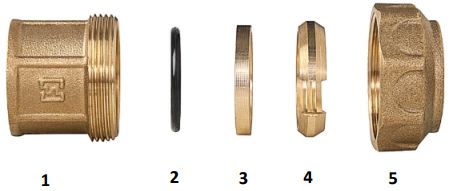

ItemDescriptionMaterials
1BodyHPb57-3
2O ringNBR
3Washer ringHPb57-3
4Compression (C-Ring)HPb57-3
5NutHPb57-3

Structure

Product Technical Document
Features

  • Suitable for applications: plumbing system and heating installations

  • Size: 20mm - 63mm

  • ACS Certificate

  • Adaptable Pipe: LDPE, MDPE, HDPE

  • Surface treatment options: raw

  • Working temperature: -10°C to + 80°C

  • Max Pressure PN: 16 bar (PN-16)

  • Fastening threads: ISO228/1

Straight Coupler
Equal Straight Coupler C×C, HS140-001
Inquiry
SIZEDL
20×2020.728
25×2525.830
32×323338.5
40×4041.546.5
50×505158
63×636468
Female Straight Coupler C×FI, HS140-002
Inquiry
SIZEDGLL1
20×1/2''F20.71/2''2613
25×3/4''F25.83/4''2914
32×1''F331''3515
40×1 1/4''F41.51 1/4''4016
50×1 1/2''F511 1/2''4617
63×2''F642''55.520
Male Straight Coupler C×MI, HS140-003
Inquiry
SIZEDGLL1
20×1/2''M20.71/2''2611
25×3/4''M25.83/4''2812
32×1''M331''34.514
40×1 1/4''M41.51 1/4''4116
50×1 1/2''M511 1/2''4817
63×2''M642''55.518.5
Elbow
Equal Elbow C×C, HS140-004
Inquiry
SIZEDLH
20×2020.72525
25×2525.83030
32×32333838
40×4041.54545
50×505154.554.5
63×63646767
Female Elbow C×FI, HS140-005
Inquiry
SIZEDGLHH1
20×1/2''F20.71/2''2422.513
25×3/4''F25.83/4''292614
32×1''F331''3533.515
40×1 1/4''F41.51 1/4''4338.516
50×1 1/2''F511 1/2''5044.517
63×2''F642''625520
Male Elbow C×MI, HS140-006
Inquiry
SIZEDGLHH1
20×1/2''M20.71/2''23.525.511
25×3/4''M25.83/4''273012
32×1''M331''343614
40×1 1/4''M41.51 1/4''424216
50×1 1/2''M511 1/2''4848.517
63×2''M642''6157.518.5
Wall Plate Elbow C×FI, HS140-009
Inquiry
SIZEDGLHH1H2
20×1/2''F20.71/2''244122.513
25×3/4''F25.83/4''29482614
32×1''F331''3561.533.515
Tee
Equal Tee C×C×C, HS140-007
Inquiry
SIZEDLH
20×20×2020.75025
25×25×2525.85630.5
32×32×32337038.5
40×40×4041.58646
50×50×505110056
63×63×636412469
Female Tee C×C×FI, HS140-008
Inquiry
SIZEDGLHH1
20×1/2''F20.71/2''4822.513
25×3/4''F25.83/4''582614
32×1''F331''7033.515
40×1 1/4''F41.51 1/4''8638.516
50×1 1/2''F511 1/2''10044.517
63×2''F642''1245520
