HS240 - Brass PEX Insert Fittings for USA
Pipe fittings for PEX pipes
Features
Suitable for plumbing system
Thread options: NPT male thread, NPSM female thread
Compliant with ANSI/ASME B1.20.1 and F1807 standard
Material options: C46500 brass

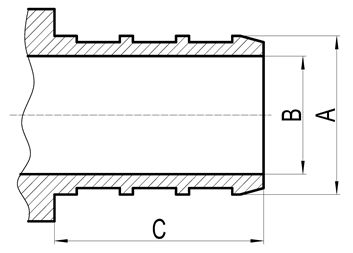

| Size | Nominal Dimension and Tolerance |
| A(mm) | B(mm) | C(mm) |
| 3/8" | Ф8.76 | ±0.1 | 5.85 | +0.1 | MIN16.0 |
| 1/2" | Ф11.96 | ±0.1 | 8.89 | +0.1 | MIN16.0 |
| 5/8" | Ф14.48 | ±0.1 | 11.46 | +0.1 | MIN16.0 |
| 3/4" | Ф16.94 | ±0.1 | 13.47 | +0.1 | MIN16.0 |
| 1" | Ф21.74 | ±0.1 | 18.04 | +0.1 | MIN20.5 |
| 1 1/4" | Ф26.54 | ±0.1 | 22.1 | +0.1 | MIN24.0 |
| 1 1/2" | Ф31.32 | ±0.15 | 25.91 | +0.15 | MIN29.0 |
| 2" | Ф40.69 | ±0.15 | 34.68 | +0.15 | MIN38.0 |
Straight Coupling
Equal Coupling & Reducing Coupling, HS240-001
Inquiry
| Size |
| 3/8“×3/8“ | 1/2“×3/8“ | 1 1/2“×1 1/4“ |
| 1/2“×1/2“ | 3/4“×1/2“ | 2“×1“ |
| 5/8“×5/8“ | 3/4“×5/8“ | 2“×1 1/4“ |
| 3/4“×3/4“ | 1“×3/4“ | 2“×1 1/2“ |
| 1“×1“ | 1 1/4“×3/4“ |
|
| 1 1/4“×1 1/4“ | 1 1/4“×1“ |
|
| 1 1/2“×1 1/2“ | 1 1/2“×3/4“ |
|
| 2“×2“ | 1 1/2“×1“ |
|
Threaded Female Adapter, HS240-002
Inquiry
| Size |
| 3/8“×1/2"F | 3/4“×3/4"F | 1 1/2“×1 1/2"F |
| 1/2“×1/2"F | 3/4“×1"F | 2“×2"F |
| 1/2“×3/4"F | 1“×3/4"F |
|
| 5/8“×1/2"F | 1“×1"F |
|
| 5/8“×3/4"F | 1 1/4“×1"F |
|
| 3/4“×1/2"F | 1 1/4“×1 1/4"F |
|
Threaded Male Adapter, HS240-003
Inquiry
| Size |
| 3/8“×1/2"M | 3/4“×3/4"M | 1 1/2“×1 1/2"M |
| 1/2“×1/2"M | 3/4“×1"M | 2“×2"M |
| 1/2“×3/4"M | 1“×3/4"M |
|
| 5/8“×1/2"M | 1“×1"M |
|
| 5/8“×3/4"M | 1 1/4“×1"M |
|
| 3/4“×1/2"M | 1 1/4“×1 1/4"M |
|
Sweat Female Adapter, HS240-004
Inquiry
| Size |
| 3/8“×1/2"F | 3/4“×3/4"F | 1 1/2“×1 1/2"F |
| 1/2“×1/2"F | 3/4“×1"F | 2“×2"F |
| 1/2“×3/4"F | 1“×3/4"F |
|
| 5/8“×1/2"F | 1“×1"F |
|
| 5/8“×3/4"F | 1 1/4“×1"F |
|
| 3/4“×1/2"F | 1 1/4“×1 1/4"F |
|
Sweat Male Adapter, HS240-005
Inquiry
| Size |
| 3/8“×1/2"M | 3/4“×3/4"M | 1 1/2“×1 1/2"M |
| 1/2“×1/2"M | 3/4“×1"M | 2“×2"M |
| 1/2“×3/4"M | 1“×3/4"M |
|
| 5/8“×1/2"M | 1“×1"M |
|
| 5/8“×3/4"M | 1 1/4“×1"M |
|
| 3/4“×1/2"M | 1 1/4“×1 1/4"M |
|
Swivel Adapter with Brass Nut, HS240-013
Inquiry
| Size |
| 3/8“×3/8"F |
| 3/8“×1/2"F |
| 1/2“×1/2"F |
| 1/2“×3/4"F |
| 3/4“×3/4"F |
| 3/4“×1"F |
| 1“×1"F |
Swivel Adapter with Plastic Nut, HS240-014
Inquiry
| Size |
| 3/8“×3/8"F |
| 3/8“×1/2"F |
| 1/2“×1/2"F |
| 1/2“×3/4"F |
| 3/4“×3/4"F |
| 3/4“×1"F |
| 1“×1"F |
Brass Plug, HS240-016
Inquiry
| Size |
| 3/8“ |
| 1/2“ |
| 5/8“ |
| 3/4“ |
| 1“ |
| 1 1/4“ |
| 1 1/2“ |
| 2“ |
Polybutylene Adapter with PB Crimp Ring, HS240-017
Inquiry
Elbow Fitting
Equal Elbow & Reducing Elbow, HS240-006
Inquiry
| Size |
| 3/8“×3/8“ | 1/2“×3/8“ |
| 1/2“×1/2“ | 3/4“×1/2“ |
| 5/8“×5/8“ | 3/4“×5/8“ |
| 3/4“×3/4“ | 1“×3/4“ |
| 1“×1“ |
|
| 1 1/4“×1 1/4“ |
|
| 1 1/2“×1 1/2“ |
|
| 2“×2“ |
|
Threaded Female Elbow, HS240-007
Inquiry
| Size |
| 3/8“×1/2"F | 3/4“×3/4"F | 1 1/2“×1 1/2"F |
| 1/2“×1/2"F | 3/4“×1"F | 2“×2"F |
| 1/2“×3/4"F | 1“×3/4"F |
|
| 5/8“×1/2"F | 1“×1"F |
|
| 5/8“×3/4"F | 1 1/4“×1"F |
|
| 3/4“×1/2"F | 1 1/4“×1 1/4"F |
|
Threaded Male Elbow, HS240-008
Inquiry
| Size |
| 3/8“×1/2"M | 3/4“×3/4"M | 1 1/2“×1 1/2"M |
| 1/2“×1/2"M | 3/4“×1"M | 2“×2"M |
| 1/2“×3/4"M | 1“×3/4"M |
|
| 5/8“×1/2"M | 1“×1"M |
|
| 5/8“×3/4"M | 1 1/4“×1"M |
|
| 3/4“×1/2"M | 1 1/4“×1 1/4"M |
|
Sweat Female Elbow, HS240-009
Inquiry
| Size |
| 3/8“×1/2"F |
| 1/2“×1/2"F |
| 1/2“×3/4"F |
| 5/8“×3/4"F |
| 3/4“×1/2"F |
| 3/4“×3/4"F |
| 1“×1"F |
Sweat Male Elbow, HS240-010
Inquiry
| Size |
| 1/2“×1/2"M |
| 1/2“×3/4"M |
| 5/8“×3/4"M |
| 3/4“×3/4"M |
| 1“×1"M |
Wallplate Elbow, HS240-011
Inquiry
| Size |
| 3/8“×1/2"F |
| 1/2“×3/8"F |
| 1/2“×1/2"F |
| 3/4“×1/2"F |
| 3/4“×3/4"F |
Swivel Elbow with Plastic Nut, HS240-015
Inquiry
| Size |
| 3/8“×3/8"F |
| 3/8“×1/2"F |
| 1/2“×1/2"F |
| 1/2“×3/4"F |
| 3/4“×3/4"F |
Tee Fitting
Equal Tee & Reducing Tee, HS240-012
Inquiry
| Size |
| 3/8“×3/8“×3/8“ | 1/2“×1/2“×3/8“ | 1“×3/4“×1/2“ | 1 1/2“×1 1/4“×3/4“ | 2“×1 1/2“×1 1/2“ |
| 1/2“×1/2“×1/2“ | 1/2“×1/2“×3/4“ | 1“×1/2“×3/4“ | 1 1/2“×1 1/4“×1“ | 2“×2“×1/2“ |
| 5/8“×5/8“×5/8“ | 3/4“×3/4“×3/8“ | 1“×1/2“×1“ | 1 1/2“×1 1/4“×1 1/4“ | 2“×2“×3/4“ |
| 3/4“×3/4“×3/4“ | 3/4“×1/2“×1/2“ | 1 1/4“×1“×3/4“ | 1 1/2“×1 1/2“×1/2“ | 2“×2“×1“ |
| 1“×1“×1“ | 3/4“×1/2“×3/4“ | 1 1/4“×1“×1“ | 1 1/2“×1 1/2“×3/4“ | 2“×2“×1 1/4“ |
| 1 1/4“×1 1/4“×1 1/4“ | 3/4“×3/4“×1/2“ | 1 1/4“×1 1/4“×1/2“ | 1 1/2“×1 1/2“×1“ | 2“×2“×1 1/2“ |
| 1 1/2“×1 1/2“×1 1/2“ | 3/4“×3/4“×1“ | 1 1/4“×1 1/4“×3/4“ | 1 1/2“×1 1/2“×1 1/4“ |
|
| 2“×2“×2“ | 1“×3/4“×1“ | 1 1/4“×1 1/4“×1“ | 2“×1 1/4“×1 1/4“ |
|
| 3/8“×3/8“×1/2“ | 1“×1“×1/2“ | 1 1/2“×3/4“×3/4“ | 2“×1 1/2“×3/4“ |
|
| 1/2“×3/8“×3/8“ | 1“×1“×3/4“ | 1 1/2“×1“×3/4“ | 2“×1 1/2“×1“ |
|
| 1/2“×3/8“×1/2“ | 1“×3/4“×3/4“ | 1 1/2“×1“×1“ | 2“×1 1/2“×1 1/4“ |
|
>
>
>
>
>
>
