HS270 - Brass Compression Fittings for USA

Pipe fittings for use with copper tubing, aluminum tubing and plastic tubing

The brass compression fittings are ideal for use with copper, brass, aluminum, or plastic tubing and are commonly used on gasoline, grease, oil, water, vacuum, and air lines. The fittings are not recommended for use with steel tube.

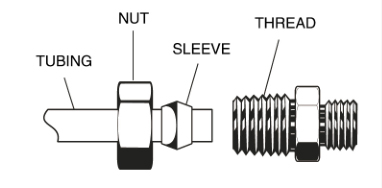

Structure

Product Technical Document
Features

  • Working Temperature: -65°F to 250°F

  • Working Pressure: Temperature and type of tubing must be considered for proper fitting selection.

  • The following is based on 70°F with copper tube.

Installation Instruction

Cut tube square on the end. Start tubing on the insert and slide into the fitting until it hits the stop. Wrench tightens approximately 1 1/2 to 2 turns beyond hand tight. Do not over tighten.

Brass Compression Union
Compression Union, HS270-001
Inquiry
Size
1/8“1/2“
3/16“5/8“
1/4“3/4“
5/16“7/8“
3/8“
Compression Reducing Union, HS270-002
Inquiry
Size
1/4“×1/8“5/8“×3/8“
1/4“×3/16“5/8“×1/2“
3/8“×1/4“
5/16“×1/4“
1/2“×3/8“
Compression Female Connector, HS270-003
Inquiry
Size
1/8“×1/8"F1/4“×1/2"F3/8“×3/8"F
3/16“×1/8"F5/16“×1/8"F3/8“×1/2"F
3/16“×1/4"F5/16“×1/4"F3/8“×3/4"F
1/4“×1/8"F5/16“×3/8"F1/2“×1/4"F
1/4“×1/4"F3/8“×1/8"F1/2“×3/8"F
1/4“×3/8"F3/8“×1/4"F1/2“×1/2"F
3/4“×1/2"F5/8“×3/8"F1/2“×3/4"F
3/4“×3/4"F5/8“×1/2"F7/8“×1/2"F

5/8“×3/4"F7/8“×3/4"F
Compression Male Connector, HS270-004
Inquiry
Size
1/8“×1/8"M1/4“×1/2"M3/8“×3/8"M
3/16“×1/8"M5/16“×1/8"M3/8“×1/2"M
3/16“×1/4"M5/16“×1/4"M3/8“×3/4"M
1/4“×1/8"M5/16“×3/8"M1/2“×1/4"M
1/4“×1/4"M3/8“×1/8"M1/2“×3/8"M
1/4“×3/8"M3/8“×1/4"M1/2“×1/2"M
1/2“×3/4"M3/4“×1/2"M7/8“×1/2"M
5/8“×3/8"M3/4“×3/4"M7/8“×3/4"M
5/8“×1/2"M5/8“×3/4"M
Brass Compression Elbow
Compression Equal Elbow, HS270-005
Inquiry
Size
1/8“1/2“
3/16“5/8“
1/4“3/4“
5/16“7/8“
3/8“
Compression Female Elbow, HS270-006
Inquiry
Size
1/8“×1/8"F1/4“×1/2"F3/8“×3/8"F5/8“×3/8"F
3/16“×1/8"F5/16“×1/8"F3/8“×1/2"F5/8“×1/2"F
3/16“×1/4"F5/16“×1/4"F1/2“×1/4"F5/8“×3/4"F
1/4“×1/8"F5/16“×3/8"F1/2“×3/8"F3/4“×1/2"F
1/4“×1/4"F3/8“×1/8"F1/2“×1/2"F3/4“×3/4"F
1/4“×3/8"F3/8“×1/4"F1/2“×3/4"F7/8“×3/4"F
Compression Male Elbow, HS270-007
Inquiry
Size
1/8“×1/8"M1/4“×1/2"M3/8“×3/8"M5/8“×3/8"M
3/16“×1/8"M5/16“×1/8"M3/8“×1/2"M5/8“×1/2"M
3/16“×1/4"M5/16“×1/4"M1/2“×1/4"M5/8“×3/4"M
1/4“×1/8"M5/16“×3/8"M1/2“×3/8"M3/4“×1/2"M
1/4“×1/4"M3/8“×1/8"M1/2“×1/2"M3/4“×3/4"M
1/4“×3/8"M3/8“×1/4"M1/2“×3/4"M7/8“×3/4"M
Brass Compression Tee
Compression Male Tee, HS270-009
Inquiry
Size
1/4“×1/4“×1/4“M
3/8“×3/8“×1/4“M
3/8“×3/8“×3/8“M
1/2“×1/2“×3/8“M
1/2“×1/2“×1/2“M
Compression 3-End Tee, HS270-008
Inquiry
Size
1/8“1/2“
3/16“5/8“
1/4“3/4“
5/16“7/8“
3/8“
