Honson HS300 brass sliding fittings for PEX pipe are well-designed and suitable for use in plumbing system. The fittings are available in sizes from Ø12 to Ø 25. They are easily installed and disassembled.

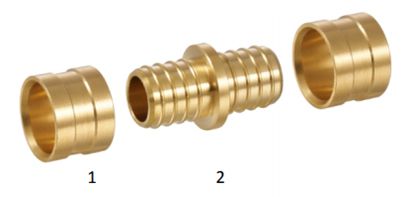

| Item | Description | Materials |
| 1 | Nut | CW617N-4MS / MS58 |
| 2 | Body | CW617N-4MS / MS58 |
Ideal for use in plumbing system
Fast and simple installation
Sizes from Ø12 to Ø 25
Installation Instruction
To avoid incorrect assembly, you should check the dimensions of the components before installation.
Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
Deburr and calibrate the internal surface of the pipe with appropriate tools.
Insert the pipe on the body up to the mechanical stop.
Slide the nut onto the pipe and move to the mechanical stop on the body.
Tighten the nut with suitable claw.
| SIZE | D | L |
| 12×12(×1.1) | 12 | 33 |
| 16×16(×1.5) | 16 | 33 |
| 20×20(×1.9) | 20 | 33 |
| 25×25(×2.3) | 25 | 45 |
| SIZE | D | G | L | L1 |
| 12(×1.1)×3/8″F | 12 | 3/8" | 26 | 8.5 |
| 12(×1.1)×1/2″F | 12 | 1/2" | 28.5 | 11.5 |
| 16(×1.5)×3/8″F | 16 | 3/8" | 25.5 | 8.5 |
| 16(×1.5)×1/2″F | 16 | 1/2" | 28.5 | 11.5 |
| 16(×1.5)×3/4″F | 16 | 3/4" | 30 | 13 |
| 20(×1.9)×1/2″F | 20 | 1/2" | 28.5 | 11.5 |
| 20(×1.9)×3/4″F | 20 | 3/4" | 30 | 13 |
| 25(×2.3)×3/4″F | 25 | 3/4" | 36 | 13 |
| 25(×2.3)×1″F | 25 | 1" | 37.5 | 14 |
| SIZE | D | G | L | L1 |
| 12(×1.1)×3/8″M | 12 | 3/8" | 28.5 | 9.5 |
| 12(×1.1)×1/2″M | 12 | 1/2" | 30 | 11 |
| 16(×1.5)×3/8″M | 16 | 3/8" | 28.5 | 9.5 |
| 16(×1.5)×1/2″M | 16 | 1/2" | 30 | 11 |
| 16(×1.5)×3/4″M | 16 | 3/4" | 31 | 11.5 |
| 20(×1.9)×1/2″M | 20 | 1/2" | 31 | 11 |
| 20(×1.9)×3/4″M | 20 | 3/4" | 31 | 11.5 |
| 20(×1.9)×1″M | 20 | 1" | 33.5 | 12.5 |
| 25(×2.3)×1/2″M | 25 | 1/2" | 38 | 11 |
| 25(×2.3)×3/4″M | 25 | 3/4" | 38 | 11 |
| 25(×2.3)×1″M | 25 | 1" | 39.5 | 12.5 |
| SIZE | D | G | L |
| 12(×1.1)×3/8″F | 12 | 3/8" | 20 |
| 12(×1.1)×1/2″F | 12 | 1/2" | 20 |
| 16(×1.5)×3/8″F | 16 | 3/8" | 20 |
| 16(×1.5)×1/2″F | 16 | 1/2" | 20 |
| 16(×1.5)×3/4″F | 16 | 3/4" | 20 |
| 20(×1.9)×1/2″F | 20 | 1/2" | 20 |
| 20(×1.9)×3/4″F | 20 | 3/4" | 20 |
| 25(×2.3)×3/4″F | 25 | 3/4" | 25.5 |
| 25(×2.3)×1″F | 25 | 1" | 26.5 |
| SIZE | D | L | H |
| 12×12(×1.1) | 12 | 23.5 | 23.5 |
| 16×16(×1.5) | 16 | 25.5 | 25.5 |
| 20×20(×1.9) | 20 | 28 | 28 |
| 25×25(×2.3) | 25 | 36.5 | 36.5 |
| SIZE | D | G | L | H | H1 |
| 12(×1.1)×1/2″F | 12 | 1/2" | 29.5 | 18.5 | 11.5 |
| 16(×1.5)×1/2″F | 16 | 1/2" | 29.5 | 20 | 11.5 |
| 20(×1.9)×1/2″F | 20 | 1/2" | 29.5 | 21.5 | 11.5 |
| SIZE | D | G | L | H | H1 |
| 12(×1.1)×1/2″M | 12 | 1/2" | 28.5 | 18.5 | 9.5 |
| 16(×1.5)×1/2″M | 16 | 1/2" | 28.5 | 20.5 | 9.5 |
| 20(×1.9)×1/2″M | 20 | 1/2" | 28.5 | 22.5 | 9.5 |
| SIZE | D | G | L | H | H1 | H2 |
| 12(×1.1)×1/2″F | 12 | 1/2" | 29.5 | 28.5 | 18.5 | 11.5 |
| 16(×1.5)×1/2″F | 16 | 1/2" | 29.5 | 31.5 | 20 | 11.5 |
| SIZE | D | G | L | H |
| 12(×1.1)×1/2″F | 12 | 1/2" | 25.5 | 25.5 |
| 16(×1.5)×1/2″F | 16 | 1/2" | 25.5 | 27.5 |
| 16(×1.5)×3/4″F | 16 | 3/4" | 28.5 | 28.5 |
| SIZE | D | L | H |
| 12×12×12(×1.1) | 12 | 47 | 23.5 |
| 16×16×16(×1.5) | 16 | 51 | 25.5 |
| 20×20×20(×1.9) | 20 | 56 | 28 |
| 25×25×25(×2.3) | 25 | 73 | 36.5 |
| SIZE | D | D1 | D2 | L1 | L2 | H |
| 16×12×12 | 16 | 12 | 12 | 23.5 | 25 | 25.5 |
| 16×12×16 | 16 | 12 | 16 | 23.5 | 23.5 | 25.5 |
| 20×16×20 | 20 | 16 | 20 | 25.5 | 25.5 | 28 |
| SIZE | D | G | L | H | H1 |
| 12×12(×1.1)×1/2″F | 12 | 1/2" | 59 | 18.5 | 11.5 |
| 16×16(×1.5)×1/2″F | 16 | 1/2" | 59 | 20 | 11.5 |
| 20×20(×1.9)×1/2″F | 20 | 1/2" | 59 | 21.5 | 11.5 |
| SIZE | D | G | L | H | H1 |
| 12×12(×1.1)×1/2″F | 12 | 1/2" | 57 | 18.5 | 9.5 |
| 16×16(×1.5)×1/2″F | 16 | 1/2" | 57 | 20.5 | 9.5 |
| 20×20(×1.9)×1/2″F | 20 | 1/2" | 57 | 22.5 | 9.5 |
