HS190 - Brass Threaded Fittings

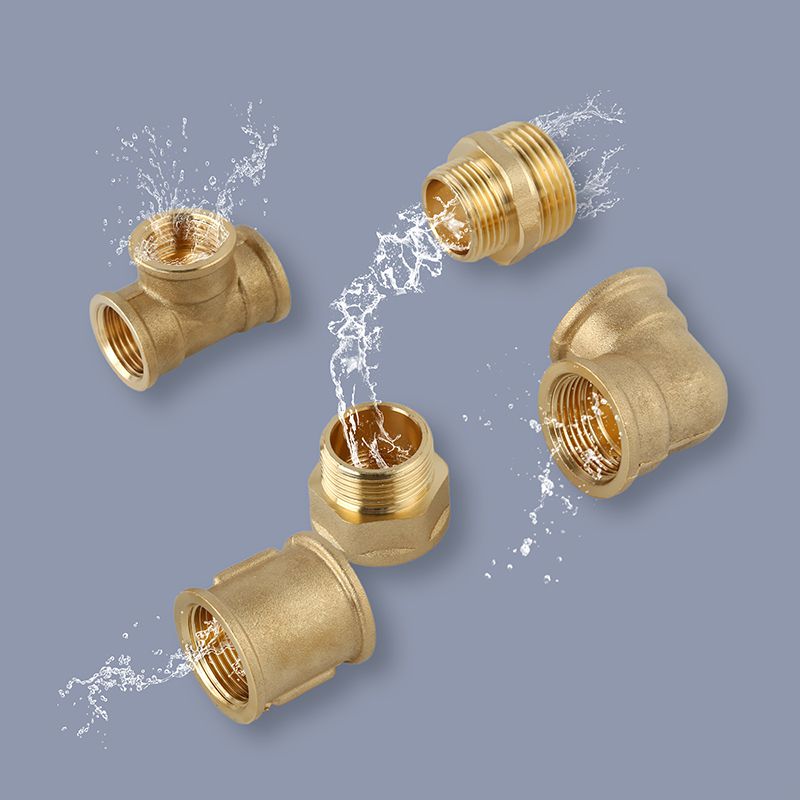

Honson HS190 brass threaded fittings are well-suited for the use in a wide range of applications such as heating, rain water, plumbing system and sanitary system. They are durable and easy to install.

The wide range of thread fittings dimensions from 1/4” up to 4” as well as different surface treatment offer installers the option of choosing the right fittings for the application.

Structure

Product Technical Document

Features

Ideal for use in plumbing system and heating installations
CE approved
Compliant with EN1254-4 standard
CW617N-4MS brass material according to UNE-EN12165.
Fast and easy installation.
Wide range of fitting dimensions from 1/4” up to 4”.

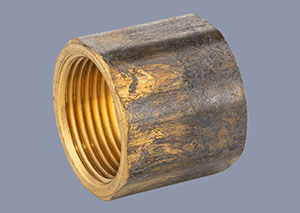

Different surface treatment options, raw, chrome-plated, nickel-plated
More than 70 varieties
Marked for full traceability

Straight Connector

Equal Socket F×F, HS190-001

Inquiry

SIZE	G	L
1/4''	1/4''	22
3/8''	3/8"	25
1/2''	1/2"	30
3/4''	3/4"	34
1''	1"	36
1 1/4''	1 1/4"	43
1 1/2''	1 1/2"	53
2''	2''	65
2 1/2''	2 1/2"	68
3''	3"	70
4''	4"	80

Reduced Socket F×F, HS190-002

Inquiry

SIZE	G	G1	L	L1
1/2''×3/8''	1/2"	3/8"	21.5	13
3/4''×1/2''	3/4"	1/2"	26	14.5
1'' ×1/2''	1"	1/2"	28	16
1''×3/4''	1"	3/4"	29	16
1 1/4''×1/2''	1 1/4"	1/2"	30.5	18.5
1 1/4''×3/4''	1 1/4"	3/4"	31.5	18.5
1 1/4''×1''	1 1/4"	1"	33	18.5
1 1/2''×1''	1 1/2"	1"	33	19.5
1 1/2'' ×1 1/4''	1 1/2"	1 1/4"	35	19.5
2''×1''	2"	1"	37	23
2'' ×1 1/4''	2"	1 1/4"	39	23
2'' ×1 1/2''	2"	1 1/2"	40	23

Equal Nipple M×M, HS190-003

Inquiry

SIZE	G	L	L1
1/8''	1/8''	19.5	8
1/4''	1/4''	21	8.5
3/8''	3/8"	22.5	9
1/2''	1/2"	25.5	10.5
3/4''	3/4"	29	12
1''	1"	31.5	13
1 1/4''	1 1/4"	35.5	15
1 1/2''	1 1/2"	39	16.5
2''	2"	45	19
2 1/2''	2 1/2"	58	25
3''	3"	63	27
4''	4"	81	35

Reduced Nipple M×M, HS190-004

Inquiry

SIZE	G	G1	L	L1	L2
1/4''×1/8''	1/4"	1/8"	20.5	8.5	8
3/8''×1/8''	3/8"	1/8"	21	7.5	9
3/8''×1/4''	3/8"	1/4"	21	7.5	9
1/2''×1/8''	1/2"	1/8"	23	7.5	11
1/2''×1/4''	1/2"	1/4"	23	7.5	11
1/2''×3/8''	1/2"	3/8"	24.5	9	11
3/4''×3/8''	3/4"	3/8"	26.5	9	12.5
3/4''×1/2''	3/4"	1/2"	29	11.5	12.5
1''×1/2''	1"	1/2"	30	11.5	14
1''×3/4''	1"	3/4"	31	12	14
1 1/4''×1/2''	1.1/4"	1/2"	33	11.5	16
1 1/4''×3/4''	1.1/4"	3/4"	34.5	13	16
1 1/4''×1''	1.1/4"	1"	35	13.5	16
1 1/2''×1/2''	1.1/2"	1/2"	33.5	11.5	16.5
1 1/2''×3/4''	1.1/2"	3/4"	35	13	16.5
1 1/2''×1''	1.1/2"	1"	35	13	16.5
1 1/2''×1 1/4''	1.1/2"	1.1/4"	38	16	16.5
2''×1/2''	2"	1/2"	37.5	11.5	20
2''×3/4''	2"	3/4"	39	13	20
2''×1''	2"	1"	40	14	20
2''×1 1/4''	2"	1.1/4"	42	16	20
2''×1 1/2''	2"	1.1/2"	42.5	16.5	20
2 1/2''×2''	2.1/2"	2"	54	20	25
3''×2''	3"	2"	57	20	27
3''×2 1/2''	3"	2 1/2"	62	27	25
4''×2 1/2''	4"	2 1/2"	71	35	25
4''×3''	4"	3"	73	35	27

View All

Hexagonal Equal Union M×F, HS190-005

Inquiry

SIZE	G	G1	L	L1	L2
1/4''	1/4''	1/4''	18.5	8	9
3/8''	3/8"	3/8"	18.5	8.5	9
1/2''	1/2"	1/2"	22.5	10.5	11
3/4''	3/4"	3/4"	26.5	12	12.5
1''	1"	1"	30.5	13	15
1 1/4''	1 1/4"	1 1/4"	33	15	16
1 1/2''	1 1/2"	1 1/2"	35	15.5	17
2''	2"	2"	42.5	19.5	20

Hexagonal Reduced Union M×F, HS190-006

Inquiry

SIZE	G1	G	L	L1	L2
1/8''×1/4''	1/8"	1/4"	18.5	7.5	9
1/4''×3/8''	1/4"	3/8"	20	8	10
1/4''×1/2''	1/4"	1/2"	21	8	11
3/8''×1/8''	3/8"	1/8"	19	8.5	9
3/8''×1/4''	3/8"	1/4"	19	8.5	9
3/8''×1/2''	3/8"	1/2"	21.5	8.5	11
3/8''×3/4''	3/8"	3/4"	23	8.5	12
1/2''×3/8''	1/2"	3/8"	21.5	11	8.5
1/2''×3/4''	1/2"	3/4"	25	11	12
1/2''×1''	1/2"	1"	28	11	13.5
1/2''×1 1/4''	1/2"	1 1/4"	30	11	16
3/4''×1/2''	3/4"	1/2"	24	12	11
3/4''×1''	3/4"	1"	29	12	14.5
3/4''×1 1/4''	3/4"	1 1/4"	31	12	16
1''×3/4''	1"	3/4"	27	13	12
1''×1 1/4''	1"	1 1/4"	32	13	16
1''×1 1/2''	1"	1 1/2"	34	13	17
1''×2''	1"	2"	38	13	19.5
1 1/4''×1 1/2''	1 1/4"	1 1/2"	36	16	17
1 1/4''×2''	1 1/4"	2"	40	16	19.5
1 1/2''×2''	1 1/2"	2"	40.5	17	19.5
2''×1 1/2''	2"	1 1/2"	34	19	17
2''×2 1/2''	2"	2 1/2"	49	19	25.5

View All

Extensions M×F, HS190-022

Inquiry

SIZE	D	G	G1	L	L1
3/8"×15	20	3/8"	3/8"	24	15
3/8"×30	20	3/8"	3/8"	39	30
3/8"×50	20	3/8"	3/8"	59	50
3/8"×100	20	3/8"	3/8"	109	100
1/2"×10	25	1/2"	1/2"	20	10
1/2"×15	25	1/2"	1/2"	25	15
1/2"×20	25	1/2"	1/2"	30	20
1/2"×25	25	1/2"	1/2"	35	25
1/2"×30	25	1/2"	1/2"	40	30
1/2"×40	25	1/2"	1/2"	50	40
1/2"×50	25	1/2"	1/2"	60	50
1/2"×60	25	1/2"	1/2"	70	60
1/2"×70	25	1/2"	1/2"	80	70
1/2"×80	25	1/2"	1/2"	90	80
1/2"×90	25	1/2"	1/2"	100	90
1/2"×100	25	1/2"	1/2"	110	100
3/4"×10	30.5	3/4"	3/4"	22	10
3/4"×15	30.5	3/4"	3/4"	27	15
3/4"×20	30.5	3/4"	3/4"	32	20
3/4"×25	30.5	3/4"	3/4"	37	25
3/4"×30	30.5	3/4"	3/4"	42	30
3/4"×40	30.5	3/4"	3/4"	52	40
3/4"×50	30.5	3/4"	3/4"	62	50
3/4"×60	30.5	3/4"	3/4"	72	60
3/4"×70	30.5	3/4"	3/4"	82	70
3/4"×80	30.5	3/4"	3/4"	92	80
3/4"×90	30.5	3/4"	3/4"	102	90
3/4"×100	30.5	3/4"	3/4"	112	100
1"×10	37.5	1"	1"	23	10
1"×15	37.5	1"	1"	28	15
1"×20	37.5	1"	1"	33	20
1"×25	37.5	1"	1"	38	25
1"×30	37.5	1"	1"	43	30
1"×40	37.5	1"	1"	53	40
1"×50	37.5	1"	1"	63	50

View All

Hexagonal Male Hose Nipple, HS190-023

Inquiry

SIZE	D	G	L	L1	L2
1/4''×10mm	10	1/4"	39.5	25.5	8.5
1/4''×12mm	12	1/4"	42.5	28.5	8.5
3/8''×10mm	10	3/8"	40	27	8.5
3/8''×12mm	12	3/8"	41	28.5	8.5
1/2''×10mm	10	1/2"	42	27	10.5
1/2''×12mm	12	1/2"	43.5	28.5	10.5
1/2''×13mm	14	1/2"	47	32	10.5
1/2''×14mm	14	1/2"	47	32	10.5
1/2''×16mm	16	1/2"	49	34	10.5
1/2''×18mm	18	1/2"	49	34	10.5
1/2''×20mm	20	1/2"	53.5	38.5	10.5
3/4''×20mm	20	3/4"	54	38.5	11.5
3/4''×25mm	25	3/4"	55.5	39	11.5
1''×20mm	20	1"	55.5	38.5	12
1''×25mm	25	1"	56	39	12
1''×27mm	27	1"	56	39	12
1''×30mm	30	1"	56	39	12
1 1/4''×30mm	30	1 1/4"	61.5	39	16
1 1/4''×32mm	32	1 1/4"	61.5	39	16
1 1/4''×35mm	35	1 1/4"	66	43.5	16
1 1/4''×38mm	38	1 1/4"	66	43.5	16
1 1/4''×40mm	40	1 1/4"	69.5	47	16
1 1/2''×38mm	38	1 1/2"	69	43.5	19.5
1 1/2''×40mm	40	1 1/2"	72.5	47	19.5
1 1/2''×45mm	45	1 1/2"	76	50.5	19.5
1 1/2''×50mm	50	1 1/2"	78.5	55.5	19.5
2''×50mm	50	2"	84	53	24
2''×60mm	60	2"	90	59	24
2 1/2''×63mm	63	2 1/2"	92	59	25

View All

Hexagonal Bushing, HS190-028

Inquiry

SIZE	G	G1	L	L1
1/4''×1/8''	1/4"	1/8"	10	8
3/8''×1/8''	3/8"	1/8"	13	9
3/8''×1/4''	3/8"	1/4"	13	9
1/2''×1/8''	1/2"	1/8"	14.5	10.5
1/2''×1/4''	1/2"	1/4"	14.5	10.5
1/2''×3/8''	1/2"	3/8"	14.5	10.5
3/4''×1/8''	3/4"	1/8"	16	11.5
3/4''×1/4''	3/4"	1/4"	16	11.5
3/4''×3/8''	3/4"	3/8"	16	11.5
3/4''×1/2''	3/4"	1/2"	16	11.5
3/4''×5/8''	3/4"	5/8"	16	11.5
1''×3/8''	1"	3/8"	17.5	12.5
1''×1/2''	1"	1/2"	17.5	12.5
1''×3/4''	1"	3/4"	17.5	12.5
1 1/4''×1/2''	1.1/4"	1/2"	19.5	14.5
1 1/4''×3/4''	1.1/4"	3/4"	19.5	14.5
1 1/4''×1''	1.1/4"	1"	19.5	14.5
1 1/2''×1/2''	1.1/2"	1/2"	20.5	15
1 1/2''×3/4''	1.1/2"	3/4"	20.5	15
1 1/2''×1''	1.1/2"	1"	20.5	15
1 1/2''×1 1/4''	1.1/2"	1.1/4"	20.5	15
2''×1/2''	2"	1/2"	25.5	19
2''×3/4''	2"	3/4"	25.5	19
2''×1''	2"	1"	25.5	19
2''×1 1/4''	2"	1.1/4"	25.5	19
2''×1 1/2''	2"	1.1/2"	25.5	19
2 1/2''×1 1/4''	2.1/2"	1.1/4"	28	21
2 1/2''×1 1/2''	2.1/2"	1.1/2"	28	21
2 1/2''×2''	2.1/2"	2"	28	21
3''×1 1/2''	3"	1.1/2"	33	25
3''×2''	3"	2"	33	25
3''×2 1/2''	3"	2.1/2"	33	25
4''×1 1/2''	4"	1.1/2"	44	34
4''×2''	4"	2"	44	34
4''×2 1/2''	4"	2.1/2"	44	34
4''×3''	4"	3"	44	34

View All

Hexagonal Cap, HS190-029

Inquiry

SIZE	G	L
1/8''	1/8''	9.5
1/4''	1/4"	10
3/8''	3/8"	10.5
1/2''	1/2"	12
3/4''	3/4"	13.5
1''	1"	15
1 1/4''	1 1/4"	15
1 1/2''	1 1/2"	16
2''	2"	19

Elbow

Equal Elbow F×F, HS190-007

Inquiry

SIZE	G	L	L1	H	H1
1/4''	1/4''	15.5	8.5	15.5	8.5
3/8''	3/8"	17.5	8.5	17.5	8.5
1/2''	1/2"	22	11	22	11
3/4''	3/4"	28	13.5	28	13.5
1''	1"	32	14	32	14
1 1/4''	1 1/4"	38	16	38	16
1 1/2''	1 1/2"	40.5	16	40.5	16
2''	2"	51	20	51	20
2 1/2''	2 1/2"	67	25.5	67	25.5
3''	3"	77	27	77	27
4''	4"	95	36	95	36

Reduced Elbow F×F, HS190-008

Inquiry

SIZE	G	G1	L	L1	H	H1
1/2"×3/8"	1/2"	3/8"	21	11	20	8
3/4"×1/2"	3/4"	1/2"	24.5	13.5	24	11
1"×1/2"	1"	1/2"	26.5	14	27	11
1"×3/4"	1"	3/4"	29	14	31	13
1.1/4"×1"	1 1/4"	1"	33	16	34.5	14
1.1/2"×1"	1 1/2"	1"	34	16	36.5	14
1.1/2"×1.1/4"	1 1/2"	1 1/4"	37	16	41	16

Equal Elbow M×F, HS190-009

Inquiry

SIZE	G	G1	L	L1	H	H1
1/4''	1/4''	1/4''	20	7	15	8.5
3/8''	3/8"	3/8"	24.5	9	17	8.5
1/2''	1/2"	1/2"	29	10.5	22	11
3/4"×1/2"	3/4"	1/2"	27	12	24	11
3/4''	3/4"	3/4"	33.5	12.5	28	13
1''	1"	1"	38	13	32	14
1 1/4''	1 1/4"	1 1/4"	45	15	37	15
1 1/2''	1 1/2"	1 1/2"	48	16	40	16
2''	2"	2"	62	19	52	20
2 1/2''	2 1/2"	2 1/2"	77	24	67	25.5
3''	3"	3"	86.5	27	77	27

Long Sweep Bend F×F, HS190-020

Inquiry

SIZE	G	G1	L	L1	H	L1
1/2''	1/2"	1/2"	42	12.5	42	12.5
3/4''	3/4"	3/4"	47	14	47	14
1''	1"	1"	61	16	61	16
1 1/4''	1 1/4"	1 1/4"	72	17	72	17
1 1/2''	1 1/2"	1 1/2"	83	18	83	18
2''	2"	2"	99	22	99	22

Long Sweep Bend M×F, HS190-021

Inquiry

SIZE	G	G1	L	L1	H	H1
1/2''	1/2"	1/2"	42	12.5	38.5	11
3/4''	3/4"	3/4"	47	14	43.5	12.5
1''	1"	1"	61	16	57.5	14.5
1 1/4''	1 1/4"	1 1/4"	72	17	68.5	15.5
1 1/2''	1 1/2"	1 1/2"	83	18	78	16.5
2''	2"	2"	99	22	92	19.5

Equal Elbow M×M, HS190-035

Inquiry

SIZE	G	L	L1	H	H1
3/8"	3/8"	21	8	21	8
1/2"	1/2"	23	8	23	8
3/4"	3/4"	28.5	9	28.5	9
1"	1"	35	11	35	11

Equal Flanged Elbow M×M, HS190-036

Inquiry

SIZE	G	L	L1	H	H1
1/2"	1/2"	26.5	10.5	26.5	10.5
3/4"	3/4"	32.5	12	32.5	12
1"	1"	39	14	39	14

Wallplate Elbow F×F, HS190-037

Inquiry

SIZE	G	L	L1	H	H1	H2
1/2"	1/2"	22	11	37.5	22	11
3/4"	3/4"	28	13.5	47	28	13.5

Equal Elbow M×F (Light Duty), HS190-061

Inquiry

SIZE	G	G1	L	L1	H	H1
3/8''	3/8"	3/8"	21	8.5	20.5	10
1/2''	1/2"	1/2"	24.5	11	26.5	16
1/2"×3/4"	1/2"	3/4"	30	10	25	13.5
3/4''	3/4"	3/4"	30	11.5	27.5	13.5
1''	1"	1"	37	15.5	36	16

Equal Flanged Elbow M×F, HS190-062

Inquiry

SIZE	G	G1	L	L1	H	H1
1/2''	1/2"	1/2"	30	12	26	12
3/4''	3/4"	3/4"	36	14	31	14
1''	1"	1"	46	16	40	17

135 Degree Elbow F×F, HS190-074

Inquiry

SIZE	G	L	L1	H	H1
3/8"	3/8"	16	8.5	16	8.5
1/2"	1/2"	20	11	20	11
3/4"	3/4"	25	13.5	25	13.5
1"	1"	29	14	29	14

135 Degree Elbow M×F, HS190-075

Inquiry

SIZE	G	L	L1	H	H1
3/8"	3/8"	16	8.5	22	9
1/2"	1/2"	20	11	25	10.5
3/4"	3/4"	25	13	30	12.5
1"	1"	29	14	34	13

Tee

Equal Tee F×F×F, HS190-010

Inquiry

SIZE	G	L	L1	H	H1
1/4''	1/4''	31	8.5	15.5	8.5
3/8''	3/8"	35	8.5	17.5	8.5
1/2''	1/2"	44	11	22	11
3/4''	3/4"	56	13.5	28	13.5
1''	1"	64	14	32	14
1 1/4''	1 1/4"	76	16	38	16
1 1/2''	1 1/2"	81	16	40.5	16
2''	2"	102	20	51	20
2 1/2''	2 1/2"	134	25.5	67	25.5
3''	3"	154	27	77	27
4''	4"	190	31	95	31

Reduced Tee F×F×F, HS190-011

Inquiry

SIZE	G	G1	G2	L	L1	L2	H	H1
1/2''×3/8''×1/2''	1/2"	1/2"	3/8"	42	11	11	20	8.5
3/4''×1/2''×3/4''	3/4"	3/4"	1/2"	48	13	13	25	11
1''×1/2''×1''	1"	1"	1/2"	52	14	14	27.5	11
1''×3/4''×1''	1"	1"	3/4"	57	14	14	30	13.5
1 1/4''×1/2''×1 1/4''	1 1/4"	1 1/4"	1/2"	56	16	16	32	11
1 1/4''×3/4''×1 1/4''	1 1/4"	1 1/4"	3/4"	61	16	16	34	13.5
1 1/4''×1''×1 1/4''	1 1/4"	1 1/4"	1"	66	16	16	34.5	14
1 1/2'' ×1/2''×1 1/2''	1.1/2"	1.1/2"	1/2"	59	16	16	34.5	11
1 1/2'' ×3/4''×1 1/2''	1.1/2"	1.1/2"	3/4"	63	16	16	37	13.5
1 1/2''×1''×1 1/2''	1.1/2"	1.1/2"	1"	66	16	16	38	14
1 1/2''×1 1/4''×1 1/2''	1.1/2"	1.1/2"	1 1/4"	74	16	16	41	15
2''×1/2''×2''	2"	2"	1/2"	66	21	21	44	11
2''×3/4''×2''	2"	2"	3/4"	69	21	21	44	13.5
2''×1''x2''	2"	2"	1"	78	21	21	44	15
2''×1 1/4''×2''	2"	2"	1 1/4"	85	21	21	46	16.5
2''×1 1/2''×2''	2"	2"	1 1/2"	92	21	21	46	17

View All

Equal Tee M×M×M (Reduced bore), HS190-038

Inquiry

SIZE	G	L	L1	H	H1
3/8''	3/8''	38	8	19	8
1/2''	1/2''	42	8	21	8
3/4''	3/4''	57	9	28.5	9
1''	1''	70	11	35	11

Equal Tee M×M×M (Full bore), HS190-039

Inquiry

SIZE	G	L	L1	H	H1
3/8''	3/8''	42	8	21	8
1/2''	1/2''	46	8	23	8
3/4''	3/4''	57	9	28.5	9
1''	1''	70	11	35	11

Equal Tee F×M×F, HS190-040

Inquiry

SIZE	G	G1	L	L1	H	H1
1/2''	1/2''	1/2''	44	11	23	8
3/4''	3/4''	3/4''	53	13	28.5	9
1''	1''	1''	60	14	34	11

Equal Flanged Tee M×M×M, HS190-063

Inquiry

SIZE	G	L	L1	H	H1
1/2''	1/2''	59	11.5	29.5	11.5
3/4''	3/4''	68	12.5	34	12.5

Equal Tee M×F×F, HS190-064

Inquiry

SIZE	G	G1	L	L1	L2	H	H1
1/2''	1/2''	1/2''	47.5	11	10.5	22	11
3/4''	3/4''	3/4''	54	12.5	12	27	12.5

Equal Tee M×M×F, HS190-065

Inquiry

SIZE	G	G1	L	L1	L2	H	H1
1/2''	1/2''	1/2''	49	11.5	11.5	29	11.5
3/4''	3/4''	3/4''	56	12.5	12.5	32.5	12.5

Equal Tee M×M×F, HS190-072

Inquiry

SIZE	G	G1	L	L1	H	H1
1/2''	1/2''	1/2''	47	8	20	11

Equal Cross F×F×F×F, HS190-012

Inquiry

SIZE	G	L	L1	H
3/8''	3/8"	35	8.5	35
1/2''	1/2"	44	11	44
3/4''	3/4"	56	13.5	56
1''	1"	64	15	64
1 1/4''	1 1/4"	76	16	76
1 1/2''	1 1/2"	81	17	81
2''	2"	102	20	102

Five Way Tee, HS190-024

Inquiry

SIZE	G	G1	G2	G3	L	L1	H	H1
1''×1''×1''×92mm	1"	1"	1"	1/4"	92	32	61.5	32

Union

Straight Union Metal Sealed F×F, HS190-013

Inquiry

SIZE	G	G1	L	L1	L2
1/2''	1/2"	1/2"	41	13.5	12
3/4''	3/4"	3/4"	44.5	14.5	15
1''	1"	1"	49	16	18
1 1/4''	1 1/4"	1 1/4"	59.5	20.5	19
1 1/2''	1 1/2"	1 1/2"	60	21	21
2''	2"	2"	71.5	24.5	24.5
2 1/2''	21/2"	21/2"	86.5	28	31
3''	3"	3"	96	33	35

Straight Union Metal Sealed M×F (Heavy Duty), HS190-014

Inquiry

SIZE	G	G1	L	L1	L2
1/2''	1/2"	1/2"	48	13	12
3/4''	3/4"	3/4"	56	14.5	15
1''	1"	1"	63.5	17	18
1 1/4''	1 1/4"	1 1/4"	69	17.5	19
1 1/2''	1 1/2"	1 1/2"	77.5	19.5	21
2''	2"	2"	89	24	24.5
2 1/2''	21/2"	21/2"	118.5	32	31
3''	3"	3"	128	32	35

Straight Union Metal Sealed M×F (Light Duty), HS190-015

Inquiry

SIZE	G	G1	L	L1	L2
3/8"	3/8"	3/8"	36	9	9
1/2"	1/2"	1/2"	40.5	10.5	10.5
3/4"	3/4"	3/4"	46	12	12
1"	1"	1"	50.5	14	14
1 1/4"	1 1/4"	1 1/4"	59.5	15.5	15.5
1 1/2''	1 1/2''	1 1/2''	64	17	17
2''	2''	2''	77.5	20	20

Angle Union Metal Sealed M×F, HS190-016

Inquiry

SIZE	G	G1	L	L1	H	H1
3/8"	3/8"	3/8"	39	9	17.5	8.5
1/2"	1/2"	1/2"	44	10.5	20.5	10.5
3/4"	3/4"	3/4"	52	12	25.5	12
1"	1"	1"	61.5	14	31	13.5
1 1/4"	1 1/4"	1 1/4"	75	15.5	36	15.5
1 1/2''	1 1/2''	1 1/2''	80.5	17	41.5	17.5
2''	2''	2''	96.5	20	50.5	20

Straight Union O-ring Sealed M×F, HS190-017

Inquiry

SIZE	G	G1	L	L1	L2
3/8"	3/8"	3/8"	37.5	9	9
1/2"	1/2"	1/2"	41.5	10.5	10.5
3/4"	3/4"	3/4"	47	12	12
1"	1"	1"	52	14	14
1 1/4"	1 1/4"	1 1/4"	60.5	15.5	15.5
1 1/2''	1 1/2''	1 1/2''	65	17	17
2''	2''	2''	79	20	20

Angle Union O-ring Sealed M×F, HS190-018

Inquiry

SIZE	G	G1	L	L1	H	H1
3/8"	3/8"	3/8"	40.5	9	17.5	8.5
1/2"	1/2"	1/2"	45	10.5	20.5	10.5
3/4"	3/4"	3/4"	53	12	25.5	12
1"	1"	1"	63	14	31	13.5
1 1/4"	1 1/4"	1 1/4"	73	15.5	36	15.5
1 1/2''	1 1/2''	1 1/2''	81.5	17	41.5	17.5
2''	2''	2''	98.5	20	50.5	20

Straight Union O-ring Sealed M×M, HS190-045

Inquiry

SIZE	G	G1	L	L1	L2
1/2''	1/2''	1/2''	48.5	11	10.5
3/4''	3/4''	3/4''	53	12	12
1''	1''	1''	61.5	14	14

Staight Union 2 Pieces F×F with Flat Seal, HS190-049

Inquiry

SIZE	G	G1	L	L1
1/2"×1"	1''	1/2''	15	13
3/4"×1 1/4"	1 1/4''	3/4''	15	13
1"×1 1/2"	1 1/2''	1''	22	18
1 1/4"×2"	2''	1 1/4''	23	19

Straight Union PTFE Sealed M×F, HS190-054

Inquiry

SIZE	G	G1	L	L1	L2
3/8"	3/8"	3/8"	42	9	11
1/2"	1/2"	1/2"	46	10.5	11.5
3/4"	3/4"	3/4"	51	13	13.5
1"	1"	1"	59	16	16
1 1/4"	1 1/4"	1 1/4"	65	14	15.5
1 1/2"	1 1/2"	1 1/2"	67	16.5	20
2"	2"	2"	70.5	17.5	20

Angle Union PTFE Sealed M×F, HS190-055

Inquiry

SIZE	G	G1	L	L1	H	H1
3/8"	3/8"	3/8"	45	11	22	11.5
1/2"	1/2"	1/2"	49.5	11.5	20.5	10.5
3/4"	3/4"	3/4"	57	13.5	25.5	12
1"	1"	1"	67	16	31	13.5
1 1/4"	1 1/4"	1 1/4"	77.5	15.5	37.5	16
1 1/2"	1 1/2"	1 1/2"	84	20	40.5	16
2"	2"	2"	92	20	50.5	20

Straight Union PTFE Sealed F×F, HS190-056

Inquiry

SIZE	G	G1	L	L1	L2
1/2''	1/2"	1/2"	40	12	13.5
3/4''	3/4"	3/4"	43.5	15	14
1''	1"	1"	47.5	17	17
1 1/4''	1 1/4"	1 1/4"	58	19	20.5
1 1/2''	1 1/2"	1 1/2"	59	21	19
2''	2"	2"	73.5	24.5	24.5

Straight Union PTFE Sealed M×F, HS190-057

Inquiry

SIZE	G	G1	L	L1	L2
1/2''	1/2"	1/2"	47.5	13	12
3/4''	3/4"	3/4"	55	14.5	15
1''	1"	1"	62	17	17
1 1/4''	1 1/4"	1 1/4"	66.5	17.5	19
1 1/2''	1 1/2"	1 1/2"	76.5	19.5	21
2''	2"	2"	91	24	24.5

Threaded Quick Connector

Pipe Quick Connector, HS190-026

Inquiry

SIZE	D	L	L1
20	20	43	29.5
25	25	47.5	30.5
30	30	56.5	37.5
35	35	64	41
40	40	75.5	47
45	45	87.5	59.5
50	50	79	53.5
60	60	89	56.5
70	70	98.5	64

Male Quick Connector, HS190-027

Inquiry

SIZE	G	L	L1
1/2"	1/2"	27	13
3/4"	3/4"	31.5	14.5
1"	1"	34	14.5
11/4"	11/4"	39.5	16.5
11/2"	11/2"	44.5	18
2"	2"	53.5	21

Female Quick Connector, HS190-050

Inquiry

SIZE	G	L	L1
1/2"	1/2"	31	10
3/4"	3/4"	31	10
1"	1"	33	11.5
1 1/4"	1 1/4"	36	11.5
1 1/2"	1 1/2"	38	12.5

Male Quick Connector, HS190-051

Inquiry

SIZE	G	L	L1
1/2"	1/2"	31	10
3/4"	3/4"	31	10
1"	1"	33	11.5
1 1/4"	1 1/4"	36	11.5
1 1/2"	1 1/2"	38	12.5

Pipe Quick Connector, HS190-052

Inquiry

SIZE	D	L	L1
13	13	48.5	27
16	16	48.5	27
19	19	52.5	31
22	22	52.5	31
25	25	52.5	31
32	32	66.5	44.5
38	38	73	51

Quick Connector Stop End, HS190-053

Inquiry

34.5

Others

Water Meter Connector, HS190-019

Inquiry

SIZE	G	G1	L	L1
1/2"	3/4"	1/2"	26	11
1/2"MX7/8"F	7/8"	1/2"	26	11
3/4"	1"	3/4"	35	14
1"	1 1/4"	1"	57	20
1 1/4"	1 1/2"	1 1/4"	57.5	21
1 1/2"	2"	1 1/2"	67	24
2"	2 1/2"	2"	76	29

Tank Connector, HS190-025

Inquiry

SIZE	G	L
3/8″	3/8″	48
1/2″	1/2″	50
3/4″	3/4″	50.5
1″	1″	54
1 1/4″	1 1/4″	55.5
1 1/2″	1 1/2″	64
2″	2″	74
2 1/2″	2 1/2″	80.5
3″	3″	99

HS190 - Brass Threaded Fittings

Structure
