HS220 - Brass Press Fittings

Pipe fittings for PEX-AL-PEX pipes

Honson HS220 brass press fittings for multilayer pipes are well-designed and ideal for hot and cold water distribution systems (sanitary and heating systems).

Different options of this series fittings depending on the type of tongs used in installation are as follows.

CategoryTongs profile
U-typeU profile
TH-typeTH profile
Universal typecompatible with various profile

Brass press fittings are immovable once they are installed correctly, ensuring a permanent deformation that guarantees long-term sealing. For this reason, the press fittings are the only type of coupling that can be used and guaranteed in embedded systems. It offers safe and stable connection because of the permanent compression plastic deformation of the stainless steel sleeve. The plastic lock ring separates the aluminum pipe from the brass pipe, making it corrosion-resistant.

The universal type fitting also has LBP (leak before pressed) feature, which is designed to allow the installer to detect not pressed fittings. If the fitting has not been pressed or been pressed properly, water leaks out even under low pressure.

Brass press fittings are available in sizes from Ø16 to Ø 32. They are easily installed and disassembled.

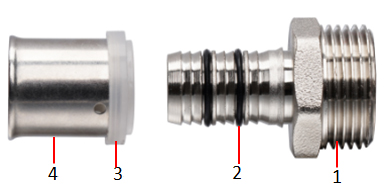

DescriptionMaterials
BodyMS58 / CW617N-4MS
O-ringEPDM
Lock ringPlastic
SleeveStainless Steel

Structure

Product Technical Document
Features

  • Ideal for use in plumbing system and heating system

  • CE approved

  • Double O-rings for additional safety

  • Working temperature: -25°C to + 120°C

  • Max Pressure PN 16 bar (PN-16)

  • Fast and easy installation, eliminates the risk of fire

  • Available sizes from Ø16 to Ø 32

  • A variety of options. U type is cost-effective. Universal type with LBP feature.

  • Marked for full traceability

Brass Press Straight Coupler
Equal Straight Coupler, HS220-001
Inquiry
SIZEDL
16×161653
20×202053
25×252566
32×323266
Reduced Straight Coupler, HS220-002
Inquiry
SIZEDD1L
20×16201653
25×16251659.5
25×20252059.5
32×20322059.5
32×25322566
Straight Female Coupler, HS220-003
Inquiry
SIZEDGLL1
16×3/8″F163/8"379
16×1/2″F161/2″39.511.5
16×3/4″F163/4″4113
20×1/2″F201/2″39.511.5
20×3/4″F203/4″4113
20×1″F201″4214
25×1/2″F251/2″4611.5
25×3/4″F253/4″47.513
25×1″F251″48.514
32×3/4″F323/4″47.513
32×1″F321″48.514
Straight Male Coupler, HS220-004
Inquiry
SIZEDGLL1
16×3/8″M163/8″39.59
16×1/2″M161/2″40.59.5
16×3/4″M163/4″4311
20×1/2″M161/2″40.59.5
20×3/4″M203/4″4311
20×1″M201″44.512.5
25×3/4″M253/4″49.511
25×1″M251″5112.5
32×1″M321″5112.5
Straight Coupler with Swivel Nut, HS220-014
Inquiry
SIZEDGL
16×1/2″F161/2″42.5
20×1/2″F201/2″45
20×3/4″F203/4″44
32×1″F321″54
Brass Press Elbow
Equal Elbow, HS220-005
Inquiry
SIZEDLH1
16×16163737
20×20203939
25×25254848
32×323251.551.5
Female Elbow, HS220-006
Inquiry
SIZEDGLHH1
16×3/8″F163/8″39159
16×1/2″F161/2″411811.5
16×3/4″F163/4″44.52013
20×1/2″F201/2″412011.5
20×3/4″F203/4″44.52213
25×1/2″F251/2″47.521.511.5
25×3/4″F253/4″5123.513
25×1″F251″54.524.514
32×1/2″F321/2″47.52511.5
32×3/4″F323/4″512613
32×1″F321″54.527.514
Male Elbow, HS220-007
Inquiry
SIZEDGLHH1
16×3/8″M163/8″37.5209
16×1/2″M161/2″39.520.59.5
16×3/4″M163/4″42.52211
20×1/2″M201/2″39.522.59.5
20×3/4″M203/4″42.52411
25×3/4″M253/4″49.52711
25×1″M251″532912.5
32×3/4″M323/4″49.53011
32×1″M321″5332.512.5
Elbow with Swivel Nut, HS220-015
Inquiry
SIZEDGLH
16×1/2″F161/2″3928
16×3/4″F163/4″42.529
20×1/2″F201/2″3930
20×3/4″F203/4″42.531
Wall Plate Elbow C×FI, HS220-016
Inquiry
SIZEDG
16×1/2″F161/2″
16×3/4″F163/4″
20×1/2″F201/2″
20×3/4″F203/4″
25×3/4″F253/4″
Brass Press Tee
Equal Tee, HS220-010
Inquiry
SIZEDLH
16×16×16167437
20×20×20207839
25×25×25259648
32×32×323210351.5
Reduced Tee, HS220-011
Inquiry
SIZEDD1D2L1L2H
16×20×16162016383836
20×16×16201616363538
20×16×20201620363638
20×20×16202016383738
20×25×16202516414045
20×25×20202520414145
25×16×16251616433541
25×16×20251620433541
25×16×25251625434341
25×20×16252016453741
25×20×20252020463741
25×20×25252025454541
25×32×20253220514448
25×32×25253225515148
32×16×25321625434245
32×16×32321632434345
32×20×20322020453745
32×20×25322025454445
32×20×32322032454545
32×25×163225164840.551
32×25×203225204840.551
32×25×25322525484751
32×25×32322532484851
View All
Female Tee, HS220-012
Inquiry
SIZEDGLHH1
16×1/2″F×16161/2″821811.5
16×3/4″F×16163/4″892013
20×1/2″F×20201/2″822011.5
20×3/4″F×20203/4″892213
25×1/2″F×25251/2″9521.511.5
25×3/4″F×25253/4″10223.513
25×1″F×25251″10924.514
32×1/2″F×32321/2″952511.5
32×3/4″F×32323/4″1022613
32×1″F×32321″10927.514
Male Tee, HS220-013
Inquiry
SIZEDGLHH1
16×1/2″M×16161/2″7920.59.5
20×1/2″M×20201/2″7922.59.5
20×3/4″M×20203/4″852411
25×3/4″M×25253/4″992711
25×1″M×25251″1062912.5
32×1″M×32321″10632.512.5
