HS130 - Heavy Duty Brass Compression Fittings

Honson HS130 brass compression fittings female threading for PE pipes are specifically designed according to DIN8076-1 for use on water distribution.

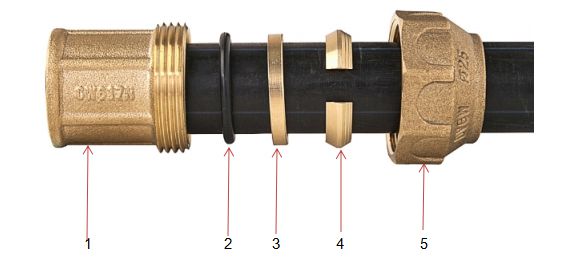

ItemDescriptionMaterials
1BodyCW617N-4MS
2O ringEPDM
3Washer ringCW617N-4MS
4Compression (C-Ring)CW617N-4MS
5NutCW617N-4MS

Structure

Product Technical Document
Features

  • Suitable for applications in plumbing system and heating installations

  • DVGW approved

  • Compliant with DIN8076-1 standard

  • Adaptable pipe: LDPE, MDPE, HDPE

  • Body and nut made in hot forging brass according to UNE-EN12165

  • Wide range of sizes from 20mm to 63mm

  • Working temperature: -10°C to + 80°C

  • Max pressure PN: 16 bar (PN-16)

  • Marked for full traceability

  • Surface treatment options: raw

  • Fastening threads: ISO228/1

Straight Coupler
Equal Straight Coupler C×C, HS130-001
Inquiry
SIZEDL
20×2020.734.5
25×2525.840
32×323348
40×4041.555.5
50×505164
63×636472
Female Straight Coupler C×FI, HS130-002
Inquiry
SIZEDRpLL1
20×1/2''F20.71/2''33.517.5
25×3/4''F25.83/4''37.519
32×1''F331''4522
40×1 1/4''F41.51 1/4''5325
50×1 1/2''F511 1/2''5725
63×2''F642''67.529
Male Straight Coupler C×MI, HS130-003
Inquiry
SIZEDRLL1
20×1/2''M20.71/2''3013.2
25×3/4''M25.83/4''3414.5
32×1''M331''4116.8
40×1 1/4''M41.51 1/4''51.522
50×1 1/2''M511 1/2''5622
63×2''M642''66.526.5
Compression Repair Coupling, HS130-011
Inquiry
SIZEDL
20×2020.795
25×2525.895
32×323397.5
40×4041.5109
50×5051116
63×6364124
Internal Pressure Cone / In-Line Sleeve, HS130-012
Inquiry
SIZEDL
2015.422
2520.425.5
3225.831.5
4032.639
5040.345
6350.753
Elbow
Equal Elbow C×C, HS130-004
Inquiry
SIZEDLH
20×2020.72828
25×2525.83434
32×32333939
40×4041.54949
50×50515757
63×63646969
Female Elbow C×FI, HS130-005
Inquiry
SIZEDRpLHH1
20×1/2''F20.71/2''282917.5
25×3/4''F25.83/4''3436.519
32×1''F331''394222
40×1 1/4''F41.51 1/4''494825
50×1 1/2''F511 1/2''5751.525
63×2''F642''6960.529
Male Elbow C×MI, HS130-006
Inquiry
SIZEDRLHH1
20×1/2''M20.71/2''282913.2
25×3/4''M25.83/4''3432.514.5
32×1''M331''393816.8
40×1 1/4''M41.51 1/4''4948.522
50×1 1/2''M511 1/2''575322
63×2''M642''696726.5
Wall Plate Elbow C×FI, HS130-007
Inquiry
SIZEDRpLHH1H2
20×1/2''F20.71/2''2852.52917.5
25×3/4''F25.83/4''3464.536.519
32×1''F331''39734222
Tee
Equal Tee C×C×C, HS130-008
Inquiry
SIZEDLH
20×20×2020.75029
25×25×2525.85834
32×32×32337540
40×40×4041.59250.5
50×50×505110961
63×63×636413272
Female Tee C×C×FI, HS130-009
Inquiry
SIZEDRpLHH1
20×1/2''F20.71/2''502917.5
25×3/4''F25.83/4''583519
32×1''F331''754222
40×1 1/4''F41.51 1/4''924825
50×1 1/2''F511 1/2''1095625
63×2''F642''1326629
Male Tee C×C×MI, HS130-010
Inquiry
SIZEDRLHH1
20×1/2''M20.71/2''482913.2
25×3/4''M25.83/4''5632.514.5
32×1''M331''7540.516.8
40×1 1/4''M41.51 1/4''925022
50×1 1/2''M511 1/2''1095522
63×2''M642''1326726.5
